Shallow Pot Magnet SWNO

SWNO Series pot magnets are made from stamped steel cups and Neodymium magnets, with Ni coating and Plastic filled. Room working temperature.

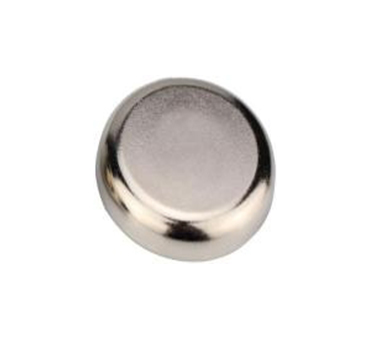

  • shallow pot magnet swno souwest magnetech

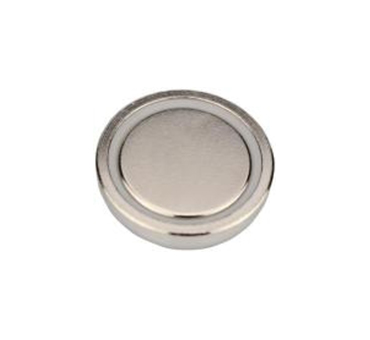

  • shallow pot magnet swno
  • shallow pot magnet swno souwest magnetech
  • shallow pot magnet swno
Request A Quote

Specification of Shallow Pot Magnet SWNO

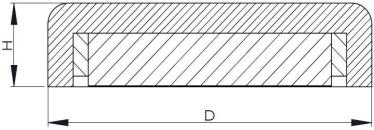

Shallow Pot Magnet SWNO Line DrawingLine Drawing Shallow Pot Magnet SWNO

Model No

Dimension (mm)

Weight (g)

Force (kg)

D

H

SWNO10

10

5

4

2

SWNO12

12

5

5

4

SWNO16

16

5

8

8

SWNO20

20

7

16

12

SWNO25

25

8

25

25

SWNO32

32

8

40

34

SWNO36

36

8

51

50

SWNO42

42

8.6

78

72

SWNO48

48

11

121

81

SWNO60

60

15

256

160

SWNO75

75

18

510

270


To Know More About Souwest Magnetech Magnets, Please Contact Us!
To Know More About Souwest Magnetech Magnets, Please Contact Us!
