Magnet Threaded SWND

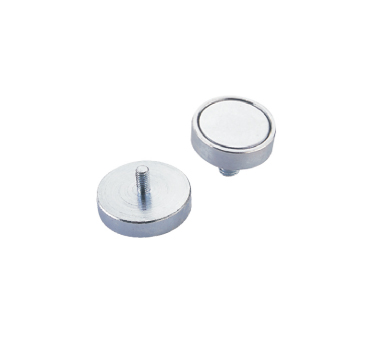

SWND Series pot magnets are made from stamping steel cup and Neodymium magnets, with screwed bush, Ni coating and Plastic filled. Room working temperature.

  • magnet threaded swnd
  • magnet threaded swnd
Request A Quote

Specification of Threaded Neodymium Magnets SWND

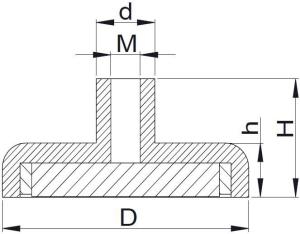

Magnet Threaded SWND Line DrawingLine Drawing Magnet Threaded SWND

Model No

Dimension (mm)

Weight (g)

Force

(kg)

D

d

H

h

M

SWND10

10

6

12.5

5

M3

4

2

SWND12

12

6

12.5

5

M3

5

4

SWND16

16

6.5

12.6

5

M4

9

8

SWND20

20

6.5

14

7

M4

17

12

SWND25

25

7.5

17

8

M5

31

25

SWND32

32

10

18

8

M6

52

34

SWND36

36

10

18

8

M6

60

50

SWND42

42

10

18

8.6

M6

95

72

SWND48

48

12

24

11

M8

160

81

SWND60

60

12

28

15

M8

340

160

SWND75

75

17

35

18

M10

635

250


To Know More About Souwest Magnetech Magnets, Please Contact Us!
To Know More About Souwest Magnetech Magnets, Please Contact Us!
Contact Us
Request a Free Quote

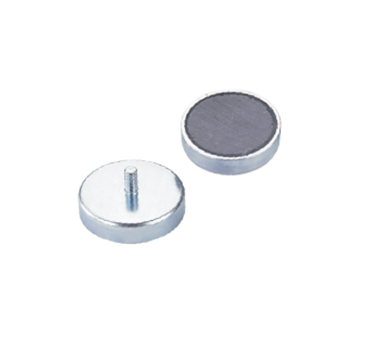

Related Souwest Magnetech Magnet Threaded
