Rectangular Pot Magnet SWNI

Name: Rectangular Pot Magnet SWNI
Brand: NINGBO SOUWEST MAGNETECH DEVELOPMENT CO.,LTD.

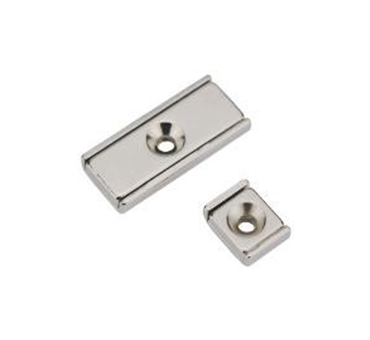

SWNI Series pot magnets are Rectangular Pot Magnets, also named Channel Magnets, which are made from stamping U shape steel and rectangular Neodymium magnets, with one/two counterbores, Ni coating. Room working temperature.

 Request A Quote

Specification of Rectangular Pot Magnet SWNI

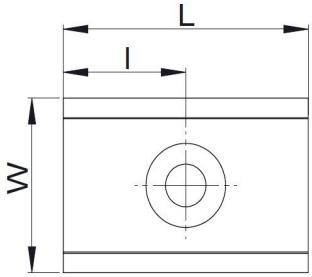

Rectangular Pot Magnet SWNI Line Drawing Line Drawing Rectangular Pot Magnet SWNI

Model No	Dimension (mm)						Weight (g)	Force (kg)
Model No	L	I	W	H	d	d1	Weight (g)	Force (kg)
SWNI10	10	5	13.5	5	3.3	6.5	5	4
SWNI15	15	7.5	13.5	5	3.3	6.5	7	7
SWNI20	20	10	13.5	5	3.3	6.5	10	8
SWNI30	30	15	13.5	5	3.3	6.5	15	16

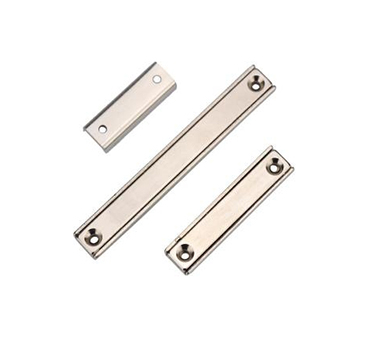

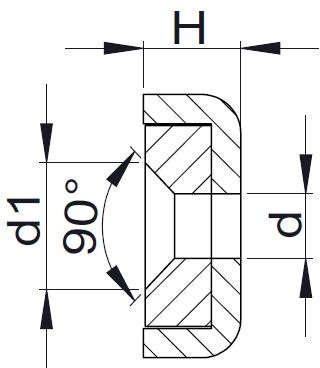

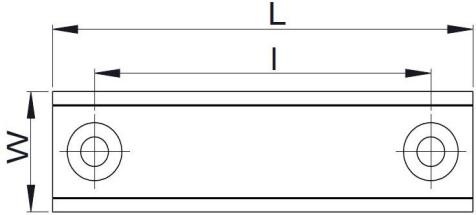

rectangular-pot-magnet-swni-with-two-counterbores-line-drawing.jpeg Line Drawing Rectangular Pot Magnet SWNI With Two Counterbores

Model No	Dimension (mm)						Weight (g)	Force (kg)
Model No	L	I	W	H	d	d1	Weight (g)	Force (kg)
SWNI40	40	30	13.5	5	3.3	6.5	19	17
SWNI50	50	40	13.5	5	3.3	6.5	24	27
SWNI60	60	50	13.5	5	3.3	6.5	30	30
SWNI80	80	70	13.5	5	3.3	6.5	38	33
SWNI100	100	90	13.5	5	3.3	6.5	48	36
SWNI120	120	110	13.5	5	3.3	6.5	58	40

To Know More About Souwest Magnetech Magnets, Please Contact Us!



Email us

info@magnetsw.com


Call us

0574-86666833


Address

99 Lipu Road Xiepu Zhenhai Ningbo

Request a Free Quote

Related Souwest Magnetech Rectangular Pot Magnet

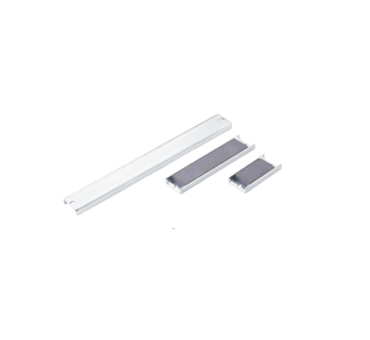

Rectangular Pot Magnet SWF9
