Shallow Pot Magnet SWNA

SWNA Series pot magnets are made from stamped steel cups and Neodymium magnets, with Ni coating, counterbore and plastic filled. Room working temp.

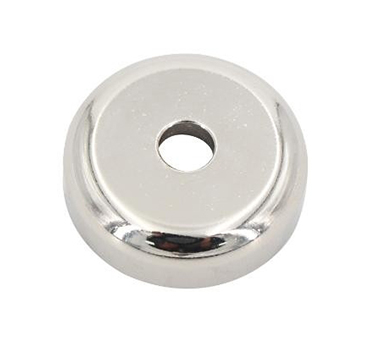

  • shallow pot magnet swna souwest magnetech
  • shallow pot magnet swna
  • shallow pot magnet swna souwest magnetech
  • shallow pot magnet swna
Request A Quote

Specification of Shallow Pot Magnet SWNA

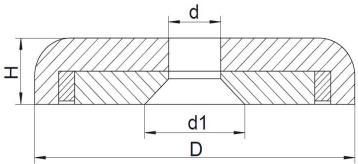

Shallow Pot Magnet SWNA Line DrawingLine Drawing Shallow Pot Magnet SWNA

Model

Dimension(mm)

Weight (g)

Force (kg)

D

d

d1

H

SWNA12

12

3.5

6.5

4.5

4

2.5

SWNA16

16

3.5

6.5

5

7

6

SWNA20

20

4.5

8.6

7

14

11

SWNA25

25

5.5

10.6

8

25

22

SWNA32

32

5.5

10.6

8

42

32

SWNA36

36

6.5

11.3

8

54

43

SWNA42

42

6.5

11.3

8.6

78

65

SWNA48

48

8.5

15.5

11

138

75

SWNA55

55

8.5

14.5

12

205

95

SWNA60

60

8.5

14.5

15

305

160

SWNA70

70

10.5

16.5

17

485

210

SWNA75

75

10.5

16.5

18

560

250

SWNA80

80

10.5

16.5

18

668

300

SWNA90

90

10.5

16.5

18

850

380

SWNA120

120

12.5

22.5

18

1520

480
