Pin Magnets

Pin magnet for office use in a range of whiteboards, refrigerators and other magnetic surfacesand, which in a variety of colors, shapes and rules for your choice.

  • pin magnets d12 19 29
  • pin magnets d11 15 21 27
  • pin magnets d12 16 25 30
  • pin magnets d16 22 25 30
  • pin magnets 12
  • pin magnets d32 36 52
  • pin magnets d12 19 29
  • pin magnets d11 15 21 27
  • pin magnets d12 16 25 30
  • pin magnets d16 22 25 30
  • pin magnets 12
  • pin magnets d32 36 52
Request A Quote

Specification of Different Pin Magnets Series Products


Pin Magnets are made from NdFeB magnets and plastic cases, with different colors.

Room working temperature.


Pin Magnets D12 19 29 StructurePin Magnets D12 19 29 Line Drawing


Model No

Dimension (mm)

Weight (g)

Hold A4 qties on white board

D

H

D12*20

12

20

3.5

18 pieces

D19*25

19

25

7

24 pieces

D29*38

29

38

22

30 pieces

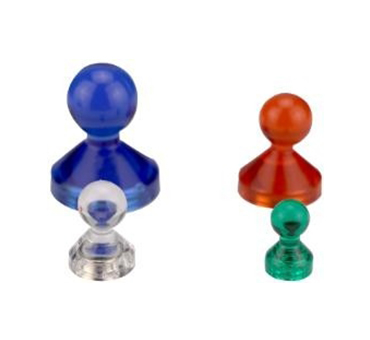

Pin Magnets are made from NdFeB magnets and acrylic cases, with different colors.

Room working temperature.

Pin Magnets D11 15 21 27 StructurePin Magnets D11 15 21 27 Line Drawing


Model No

Dimension (mm)

Weight (g)

Hold A4 qties on white board

D

d

d1

H

h

D11*17

11

9

4.2

17

3.5

1.4

11 pieces

D15*21

15

11

5

21

3.5

2.8

15 pieces

D21*26

21

13.5

5.5

26

4.5

6.7

20 pieces

D27*33

27

18

8.5

33

5.5

16

27 pieces

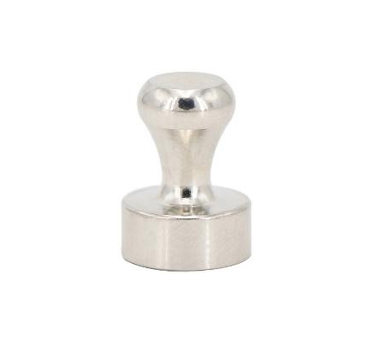

Pin Magnets are made from NdFeB magnets and steel case, with ni coating.

Room working temperature.

Pin Magnets D12 16 25 30 StructurePin Magnets D12 16 25 30 Line Drawing


Model No

Dimension (mm)

Weight (g)

Hold A4 qties on white board

D

d

H

h

D12*16

12

9

16

4

9.6

12 pieces

D16*20

16

11

20

5

16

16 pieces

D20*25

20

13

25

7

30

19 pieces

D25*30

25

18

30

7

53

23 pieces

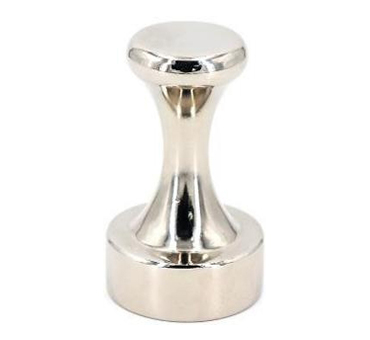

Pin Magnets D32 36 52 StructurePin Magnets D32 36 52 Line Drawing


Model No

Dimension (mm)

Weight (g)

Side force (kg)

D

d

H

h

D32*42

32

24

42

9

103

8

D36*46

36

26

46

10

140

10

D42*52

42

35

52

10

233

15

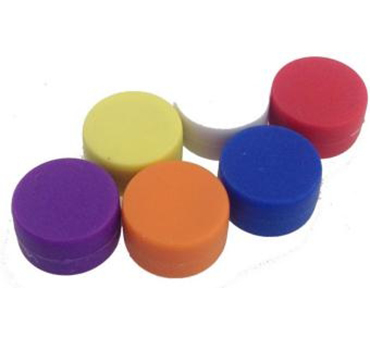

Pin Magnets are made from NdFeB magnets and polypropylene plastic case.

Room working temperature.

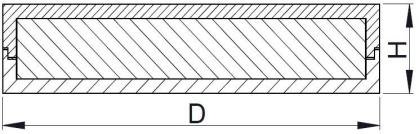

Pin Magnets D12.7 Structure


Model No

Dimension (mm)

Weight (g)

Hold A4 qties on white board

D

H

D12.7*6.35

12.7

6.35

4

11 pieces

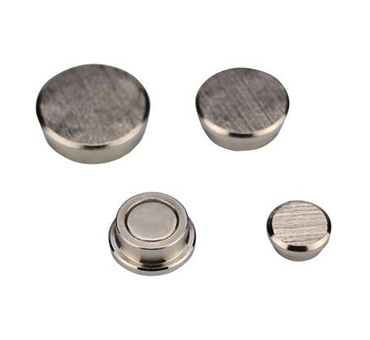

Pin Magnets are made from NdFeB magnets and steel cases with ni coating.

Room working temperature.

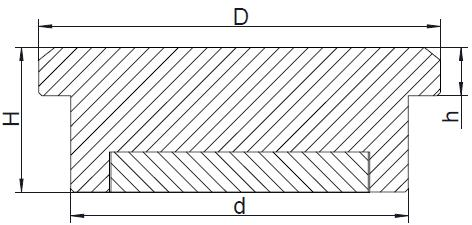

Pin Magnets D16 22 25 30 Structure

Model No

Dimension (mm)

Weight (g)

Hold A4 qties on white board

D

d (mm)

H

h (mm)

D16

16

13.2

7.2

3.2

9

11 pieces

D22

22

18

9

3

21

13 pieces

D25

25

21

9

3

27

15 pieces

D30

30

27

9

3

43

17 pieces
