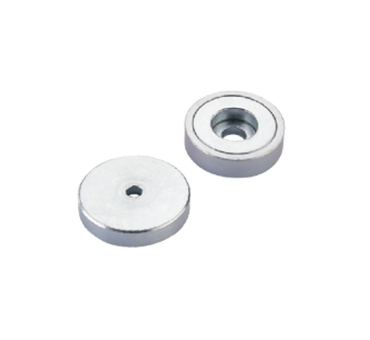

Shallow Pot Magnet SWN3

SWN3 Series pot magnets are made from lathing steel cup and Neodymium magnets, Zn coating, room working temp.

  • shallow pot magnet swn3
  • shallow pot magnet swn3
Request A Quote

Specification of Shallow Pot Magnet SWN3

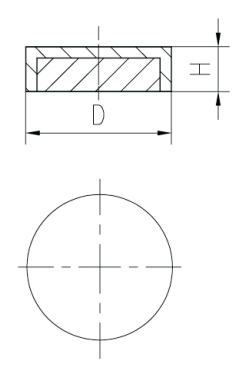

Shallow Pot Magnet SWN3 Line Drawing

MODEL NO

Dimensions(mm)

Weight(g)

Force (kg)

D

H

SWN3-6

6

4.5

1

0.51

SWN3-8

8

4.5

1.5

1.32

SWN3-10

10

4.5

2.5

2.5

SWN3-13

13

4.5

4.5

6.1

SWN3-16

16

4.5

6.5

9.7

SWN3-20

20

6

15

14.3

SWN3-25

25

7

22

20.4

SWN3-32

32

7

40

35.7

SWN3-40

40

8.5

80

51
