Magnetic Steel Chamfer

Name: Magnetic Steel Chamfer
Brand: NINGBO SOUWEST MAGNETECH DEVELOPMENT CO.,LTD.

As one of the three precast concrete magnets, magnetic chamfers can be classified into rubber type and steel type according to the material base. Neodymium magnets are embedded and sealed in the grove of steel, thus customers do not have to worry about damage and drop from concrete.

 Request A Quote

Specification of Precast Concrete Shuttering Magnet

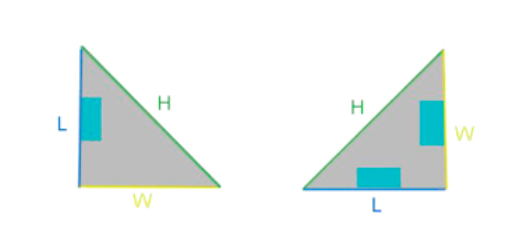

Magnetic Steel Chamfer Line Drawing

Model	Dimension(mm)					Sides of attractive
Model	L	W	H	Length (mm)	M	Sides of attractive
SWNSM-10A	10	10	14	3000	1500 or 3000	single
SWNSM-10B	10	10	14	3000	1500 or 3000	double
SWNSM-15A	15	15	21	3000	1500 or 3000	single
SWNSM-15B	15	15	21	3000	1500 or 3000	double
SWNSM-20A	20	20	28	3000	1500 or 3000	single
SWNSM-20B	20	20	28	3000	1500 or 3000	double
SWNSM-25A	25	25	35	3000	1500 or 3000	single
SWNSM-25B	25	25	35	3000	1500 or 3000	double
