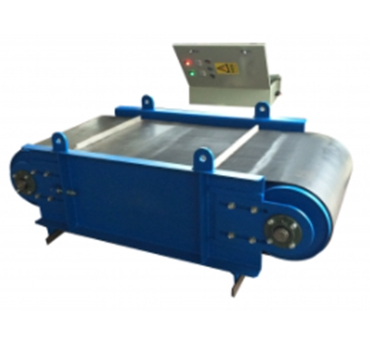

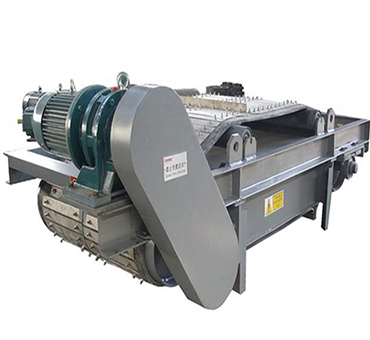

Overband magnets are also called cross belt magnetic separators, which are a kind of magnetic separators. The principle of its use is that the material is conveyed on the belt by magnets to adsorb iron impurities. If you want to know more about overband magnets prices and costs, please do not hesitate to contact Souwest Magnetech China permanent magnets.

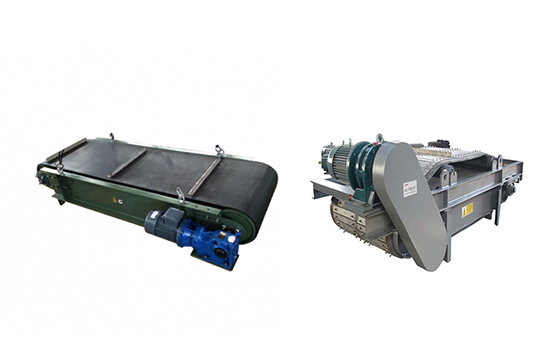

◆ Compact structure, low noise, easy maintenance, the stable magnetic field from the ferrite or rare earth magnets, energy saving without excitation system.
◆ Workable in the harsh working environment for a long time based on the specially sealed bearing seat and the belt with automatic corrective function. For very sharp ferro magnetic tramps, the unique belt armored by stainless steel plate is available to protect the belt from destruction.
◆ There are common types and explosion-proof type drive motors for customer choice.
◆ By using high-power rare earth magnets, SWPMR serial separators have a high magnetic field gradient, stable magnetic field, the super attraction that can remove Ferro blocks or Ferro scraps with weight 0.1kg – 35kg from the materials, and even remove the ferromagnetic scraps buried in the thick material layers continuously.
◆ Special requirements can be custom-made.
Max Magnetic Strength at rated Suspended Height is about 400-500Gs

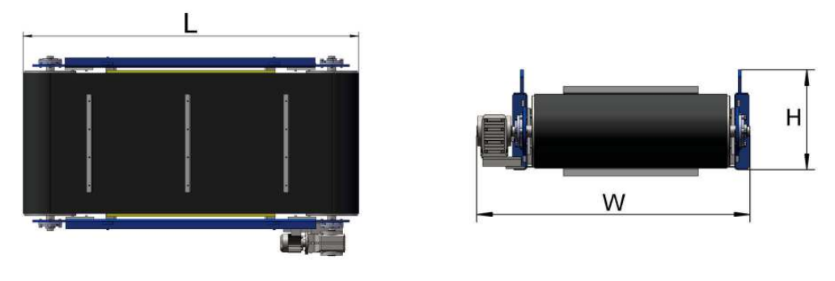

MODEL NO | Applicable Conveyor Width(mm) | Rated Suspended Height (mm) | Applicable Conveyor Speed (m/s) | Motor Power (Kw) | Weight (Kg) | Dimensions (mm) | ||
L | W | H | ||||||
SWRCY-L-50 | 500 | 180 | ＜4.5 | 1.5kw | 550 | 1446 | 910 | 435 |
SWRCY-L-65 | 650 | 200 | 1.5kw | 650 | 1711 | 1055 | 435 | |
SWRCY-L-80 | 800 | 250 | 2.2kw | 950 | 1836 | 1091 | 435 | |
SWRCY-L-100 | 1000 | 300 | 3.0kw | 1750 | 2386 | 1469 | 552 | |
SWRCY-L-120 | 1200 | 350 | 4.0kw | 2050 | 2526 | 1470 | 552 | |
Overband magnets, also known as over-band magnets or simply overbands, are essential components in material handling plants. Souwest Magnetech, a leading provider of overband magnets, highlights their crucial role in various applications:
Mobile Crushers, Screens, and Shredders: Overband magnets effectively remove unwanted metal debris, preventing damage to these machines.
Material Recovery Facilities (MRF) and Pre-Sorted Refuse Plants: These magnets help in the efficient sorting and recovery of materials.
Municipal Solid Waste Plants: Overband magnets aid in the separation of ferrous materials from waste, contributing to waste management efforts.
Quarries and Mining Operations: Overband magnets are used to remove metal contaminants from extracted materials.
Bulk Handling Terminals: Overband magnets ensure the purity of materials in these terminals.
Wood Waste Processing Plants: These overband magnets help in the removal of metal contaminants from wood waste.
Fragmentiser Plants for Shredded Vehicles: Overband magnets are used to remove metal parts from shredded vehicles.
Cullet (Crushed Glass) Recycling Plants: These overband magnets help in the removal of metal contaminants, ensuring the purity of recycled glass.
Industrial Skip Waste Recycling Operations: Overband magnets are used to ensure the quality and safety of recycling processes.
Foundries: Overband magnets are used to remove metal contaminants from raw materials.
